PE hard foam

Material Overview

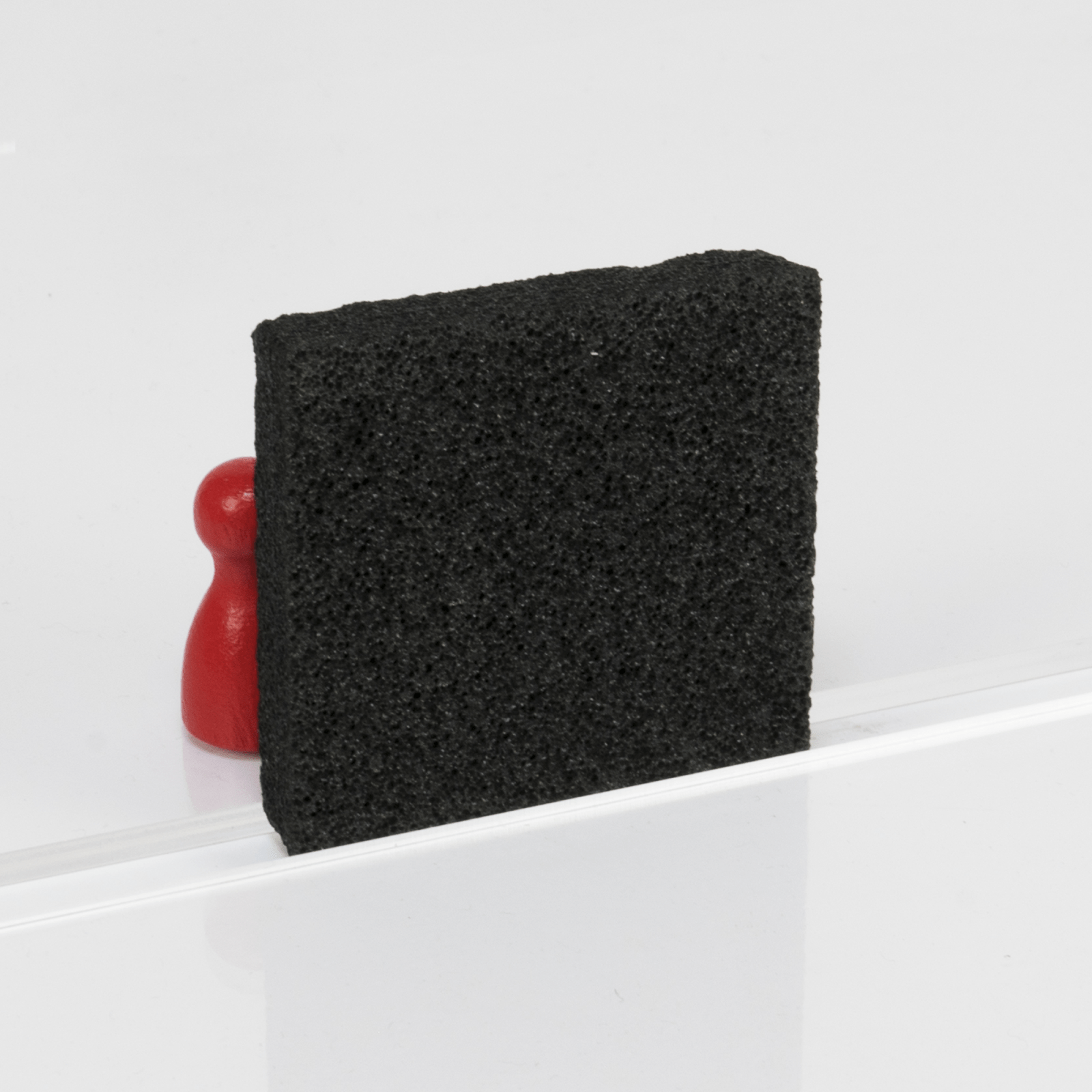

PE hard foam is a dense, closed-cell polyethylene foam that is moisture and airtight, making it highly resistant to chemicals. This matte, black foam feels firm yet resilient, similar to high-end packaging materials or flight case inlays. It is specially selected for laser cutting: sharp, clean cut edges without black residue, with a slightly kerf-sensitive bevel.

✔ Highlights

✔ Laser suitable – tight and clear cuts
✔ Ready-to-use – deployable straight out of the box
✔ Closed cell structure – water and airtight
✔ Firm yet resilient – protective properties
✔ Cutting width approx.0.6 mm (± 0.3 mm) – place notch in design
✔ No protective film – watch out for black residue underneath
✔ Post-processing possible – knife or hot-knife processing, painting or gluing
✔ Available in 5 mm, 10 mm, and 20 mm – choice for every thickness
✔ Black surface – professional appearance

For which laser source is this material suitable?

Applications

For hobbyists:
Ideal for creating inlays in cases or toolboxes, layered sculptures, wall ornaments, and protective layers for displays. The material is excellent for engraving or laser cutting in fine details.

For professionals:

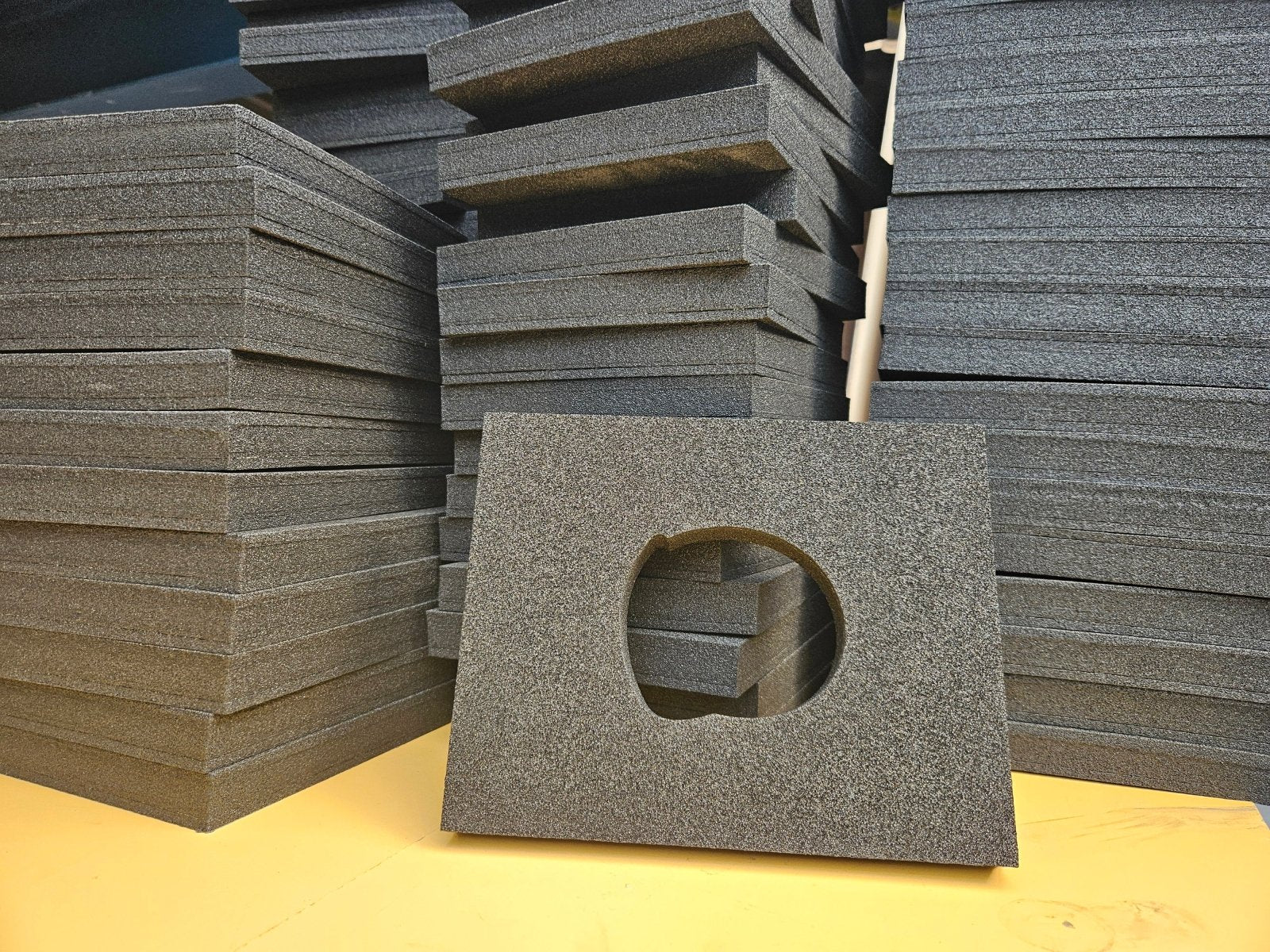

Widely used in product packaging, tool execution, display inserts, and protective padding. Also suitable for technical prototypes, cushioning applications, and custom fittings.

Technical specifications

Material type: PE foam (polyethylene, closed cell)
Finish: Matte black, sturdy and resilient
Thickness tolerance: < 20 %
Available thicknesses: 5 mm, 10 mm, 20 mm
UV resistance: No – not suitable for prolonged outdoor use
Density: ± 0.029 g/cm³
Temperature resistance: Limited – low melting point
Cutting width: ± 0.6 mm (± 0.3 mm)
Smallest supplied shape: 6 × 6 mm
Flat engraving depth: Up to approx. 1–2 mm possible
Max.panel size: 120 × 60 cm

Are you looking for a sturdy, lightweight, and precisely cut foam board for your laser projects?
Our PE rigid foam boards are ready to use, offering protection and precision – perfect for professional use, from packaging to product presentation.
